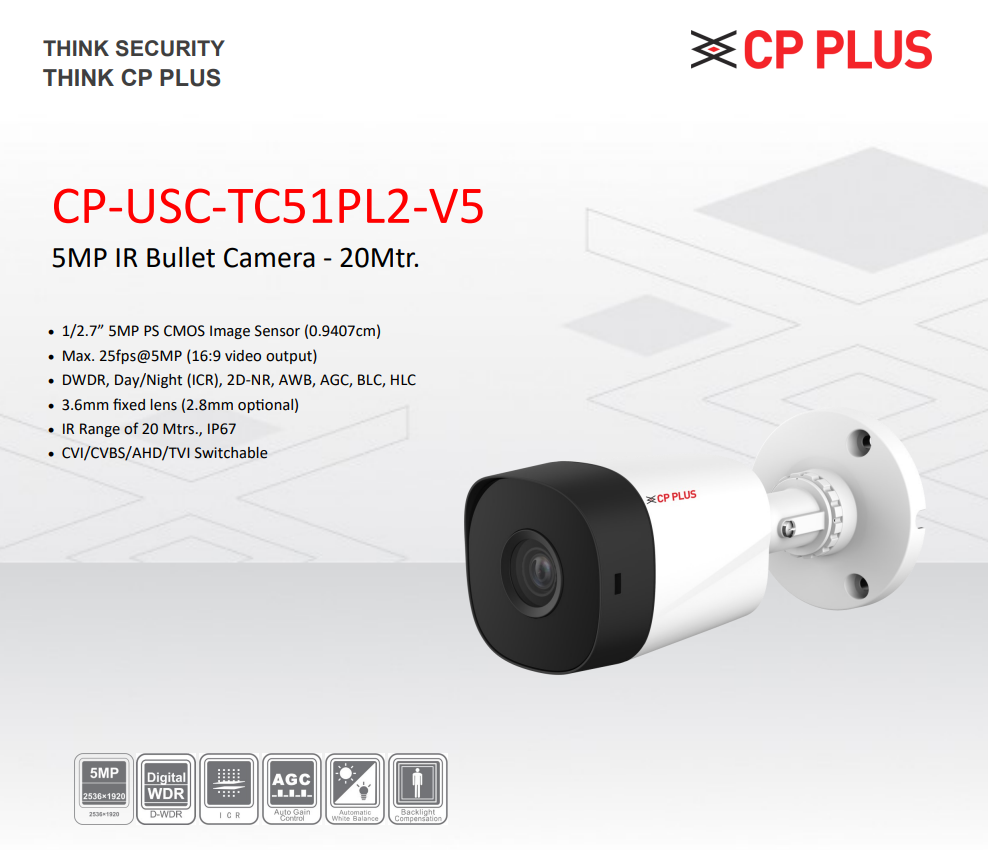

CP PLUS CP-USC-TC51PL2-V5 Powerful 5MP IR Bullet Camera – 20M Night Vision, 3.6mm Fixed Lens, IP67 Waterproof

CP PLUS CP-USC-TC51PL2-V5 is a 5MP IR bullet camera featuring 20m night vision, IP67 weatherproof casing, and UNI technology for multi-format compatibility, delivering sharp HD video with advanced night and day surveillance capabilities.

Add to compare

Pick up from the FGTECH Store

To pick up today

0-1 Days

Free

Courier delivery

Our courier will deliver to the specified address

4-7 Days

Free

Porter / WeFast

Currently available only in Mumbai

0-1 Days

To be paid directly to service vendor

Fast Delivery ( By Air )

We will ship from your product By Air to nearest center to speed up the delivery

2-4 Days

Start from Rs250 Extra

SKU: FGINFT89LXJ8 Categories: Analog Cameras, Surveillance and Security

Description

The CP PLUS CP-USC-TC51PL2-V5 5MP IR Bullet Camera is designed for superior security and surveillance with advanced imaging technology. This model features a 12.7mm 5MP Progressive Scan CMOS sensor delivering high-resolution video up to 2880×1620 pixels, ensuring crystal-clear images for reliable monitoring. With a fixed 3.6mm lens and an optional 2.8mm lens, the camera covers wide viewing angles suitable for various surveillance needs.

The CP PLUS CP-USC-TC51PL2-V5 camera excels in low-light conditions with its powerful infrared LEDs providing a 20-meter night vision range. Equipped with advanced features such as Digital Wide Dynamic Range (DWDR), Day/Night IR Cut Filter, 2D Noise Reduction (2D-NR), and Automatic Gain Control (AGC), the CP-USC-TC51PL2-V5 adapts to challenging lighting environments with ease. The robust IP67 weatherproof casing allows for outdoor installation, ensuring durability in harsh weather conditions.

The CP PLUS CP-USC-TC51PL2-V5 camera uses CP PLUS’s revolutionary UNI technology, enabling compatibility with multiple HD analog video formats (CVI, TVI, AHD, CVBS), simplifying upgrades and installations. The built-in On-Screen Display (OSD) menu supports easy customisation of camera settings, including mirror, privacy masking, and smart IR. Power protection with a wide voltage tolerance range guarantees stable operation even in fluctuating power conditions.

Key Technical Features of CP-USC-TC51PL2-V5:

12.7 mm 5MP Progressive Scan CMOS Sensor
Maximum resolution of 2880×1620 pixels at 25fps
3.6mm fixed lens (2.8mm optional) with wide viewing angle
Infrared night vision up to 20 meters
Digital Wide Dynamic Range (DWDR) and Day/Night ICR
2D Noise Reduction (2D-NR) and Automatic Gain Control (AGC)
IP67-rated weatherproof casing for outdoor use
Compatible with CVI, TVI, AHD, and CVBS analog formats via UNI technology
On-Screen Display (OSD) for easy camera adjustments
Power protection supports voltage fluctuations (12V DC, max. 3.7W).

Product Details

Specification	Details
Brand	CP PLUS
Model	CP-USC-TC51PL2-V5
Image Sensor	12.7mm 5MP Progressive Scan CMOS
Resolution	Max 2880x1620 @ 25fps (5MP)
Lens	3.6mm fixed (2.8mm optional)
Aperture	F2.0
Minimum Illumination	0.02 Lux (0 Lux IR on)
IR Range	Up to 20 meters
Video Output	CVI, TVI, AHD, CVBS (via 1 BNC port)
Wide Dynamic Range	Digital WDR (DWDR)
Noise Reduction	2D-NR
White Balance	Auto
AGC (Automatic Gain Control)	Supported
Day/Night Function	ICR (Infrared Cut Filter)
Smart IR	Yes
OSD Menu	Yes (multi-language)
Power Supply	12V DC
Power Consumption	Max 3.7W
Operating Temperature	-40°C to 60°C
Storage Temperature	-40°C to 60°C
Weatherproof Rating	IP67
Dimensions (L x W x H)	149.3 mm x 69.8 mm x 69.8 mm
Weight	0.15 kg
Additional Features	UNI technology compatibility across analog formats, power protection
