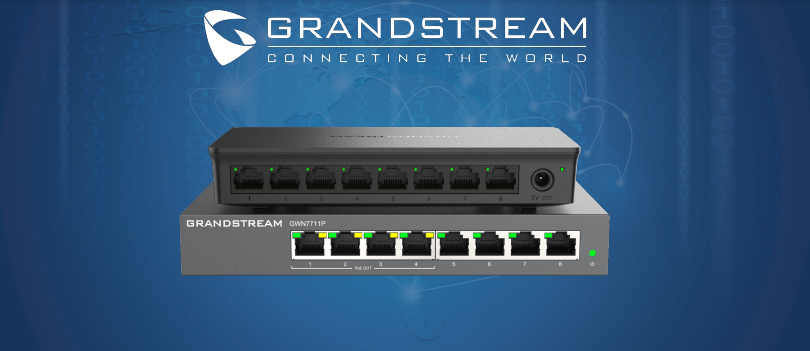

Grandstream GWN7711P 8-Port Gigabit Smart PoE+ Switch – 4 PoE+ Ports (60W Budget), VLAN, QoS, IGMP Snooping & Advanced Security

The Grandstream GWN7711P is a compact and efficient 8-port Gigabit smart PoE+ switch designed for SMBs, remote offices, and intelligent network deployments. Out of its 8 Gigabit Ethernet ports, 4 are PoE+ ports, delivering up to 30W per port and a total PoE budget of 60W to power devices such as IP phones, IP cameras, access points, and IoT endpoints.

Grandstream GWN7711P comes with a switching capacity of 16 Gbps, non-blocking throughput of 8 Gbps, and 11.9 Mpps forwarding rate, the GWN7711P ensures high-speed, reliable connectivity. It supports jumbo frames up to 15K bytes, enhancing performance for data-heavy applications.

Grandstream GWN7711P smart switch enables advanced network segmentation with support for up to 32 VLANs (from 4K IDs), 802.1Q tagging, and voice VLAN. It also features 4 Link Aggregation Groups (LAGs) to increase bandwidth and redundancy. For multicast traffic optimization, IGMP Snooping with report suppression ensures efficient media streaming and video conferencing.

To maintain performance and traffic prioritization, the Grandstream GWN7711P integrates advanced QoS with auto prioritization, 802.1p and DSCP support, bandwidth control, rate limiting, and queue scheduling (SP, WRR, WFQ).

Comprehensive security features include storm control, DHCP snooping, spanning tree, loop prevention, and a PoE watchdog, along with a Kensington lock slot for physical protection. Network administrators benefit from SNMP, LLDP, port mirroring, system diagnostics, backup/restore, and firmware upgrades, ensuring smooth operation and easy troubleshooting.

Housed in a durable metal enclosure, the GWN7711P is compact (190 × 100 × 28 mm, 0.44 kg) and supports desktop or wall-mount installation, making it highly versatile for space-constrained environments.

Key Features

• 8 Gigabit Ethernet Ports – 4 PoE+ (802.3af/at) with up to 30W per port, 60W total budget

• Flexible PoE Modes – Standard PoE+ and 24V passive PoE support (UI configurable)

• Performance – 16 Gbps switching capacity, 8 Gbps non-blocking throughput, 11.9 Mpps forwarding rate

• Jumbo Frames – Supports up to 15K bytes for efficient large-packet handling

• VLAN Support – Up to 32 VLANs (from 4K IDs), port-based VLAN, 802.1Q tagging, voice VLAN

• Link Aggregation – Supports 4 LAGs for bandwidth scaling and redundancy

• Multicast Optimization – IGMP snooping with report suppression

• QoS Features – Auto prioritization, priority mapping, traffic shaping, SP/WRR/WFQ queue scheduling, bandwidth control

• Security – Storm control, DHCP snooping, spanning tree, loop prevention, PoE watchdog, Kensington lock slot

• Management – Backup/restore, system reboot, firmware upgrade, MAC search, SNMP, LLDP, cable testing, diagnostics

• Design – Compact metal enclosure, desktop/wall-mount options, LED indicators for ports and PoE power state

• Power – External 48–53.5V DC adapter (included)

• Reliability – Operating temperature 0–40°C, non-condensing humidity 10–90%

• Package Contents – Switch, power adapter, quick installation guide

• Warranty – 3 years
