Grandstream GWN7830 Layer 3 Aggregation Managed Switch – 4 × 10G SFP+, 6 × SFP, 2 × GE, 96Gbps Switching, Advanced Routing & Security

The Grandstream GWN7830 is an enterprise-class Layer 3 aggregation managed switch built to deliver high-speed connectivity, advanced routing, and secure aggregation for large-scale networks. Grandstream GWN7830 comes with 2 × Gigabit Ethernet ports, 6 × Gigabit SFP ports, and 4 × 10G SFP+ uplinks, it offers flexible deployment for high-bandwidth backbones and smooth integration into enterprise or ISP networks.

Grandstream GWN7830 switch boasts a switching capacity of 96 Gbps, non-blocking throughput of 48 Gbps, and a forwarding rate of 71.4 Mpps, ensuring exceptional performance even in high-density traffic environments. Its store-and-forward architecture supports jumbo frames up to 10,240 bytes and guarantees low latency of <4 µs for demanding applications.

Grandstream GWN7830 is designed for scalability, the GWN7830 supports 4K VLANs, 32 link aggregation groups, and advanced spanning tree protocols (STP, RSTP, MSTP, PVST+, RPVST+). For advanced networking, it enables static and dynamic routing (RIP, OSPF, OSPFv3) with policy routing (pending) along with multicast features like IGMP/MLD Snooping and MVR.

Robust QoS and ACL capabilities ensure optimal traffic prioritization, supporting multiple scheduling modes (SP, WRR, WFQ, SP-WRR, SP-WFQ), traffic shaping, and rate limiting. Security is enterprise-ready with ARP inspection, IP source guard, 802.1X authentication, RADIUS, TACACS+, DHCP snooping, storm control, DoS protection, and port isolation.

For management, it offers Web UI, CLI (Telnet/SSH/Console), SNMP, Syslog, LLDP, RMON, and integrates seamlessly with GWN.Cloud, GWN Manager, and GDMS for centralized or remote monitoring. With its embedded controller, certificate authentication, and end-to-end QoS, the GWN7830 ensures both reliability and security at the aggregation layer.

Compact yet powerful, the switch includes a built-in 30W power supply, desktop, wall-mount, and rack-mount flexibility, and 3-year warranty, making it the perfect choice for enterprise backbones, data centers, and service provider networks.

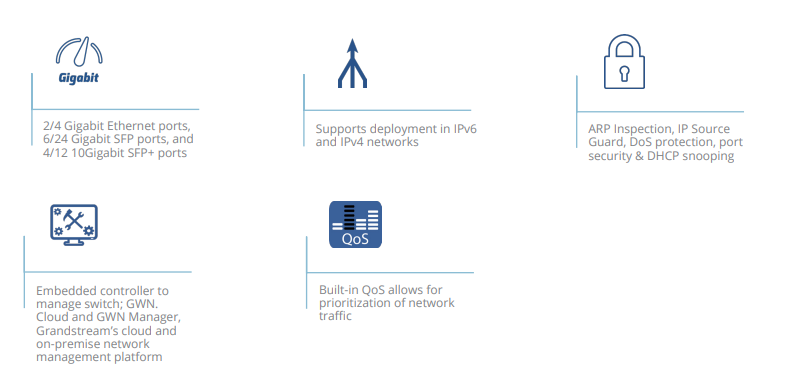

Key Features

• Ports: 2 × GE, 6 × SFP, 4 × 10G SFP+ uplinks

• Performance: 96 Gbps switching capacity, 48 Gbps throughput, 71.4 Mpps forwarding rate

• Low Latency: <4 µs with support for jumbo frames up to 10,240 bytes

• VLANs: Supports 4,000 VLAN IDs, port-based, 802.1Q tagging, QinQ, and voice VLAN

• Link Aggregation: Up to 32 LAGs for redundancy and bandwidth optimization

• Routing: Static routing and dynamic routing (RIP, OSPF, OSPFv3), policy routing pending

• Multicast: IGMP v2/v3, MLD Snooping, MVR support

• QoS & ACL: Traffic shaping, rate limiting, queue scheduling (SP, WRR, WFQ, hybrid modes), ACLs for Ethernet/IPv4/IPv6

• Security: ARP inspection, IP source guard, 802.1X authentication, RADIUS, TACACS+, DHCP snooping, DoS protection, storm control, port isolation

• Management: Web UI, CLI (Console/SSH/Telnet), SNMP v1/v2c/v3, Syslog, LLDP, RMON, diagnostics

• Centralized Management: Supported via GWN.Cloud, GWN Manager, GDMS

• Physical Design: Compact 330 × 175 × 44 mm, weight 1.91 kg, desktop/wall/rack mountable

• Power Supply: Built-in 30W PSU

• Warranty: 3 years
