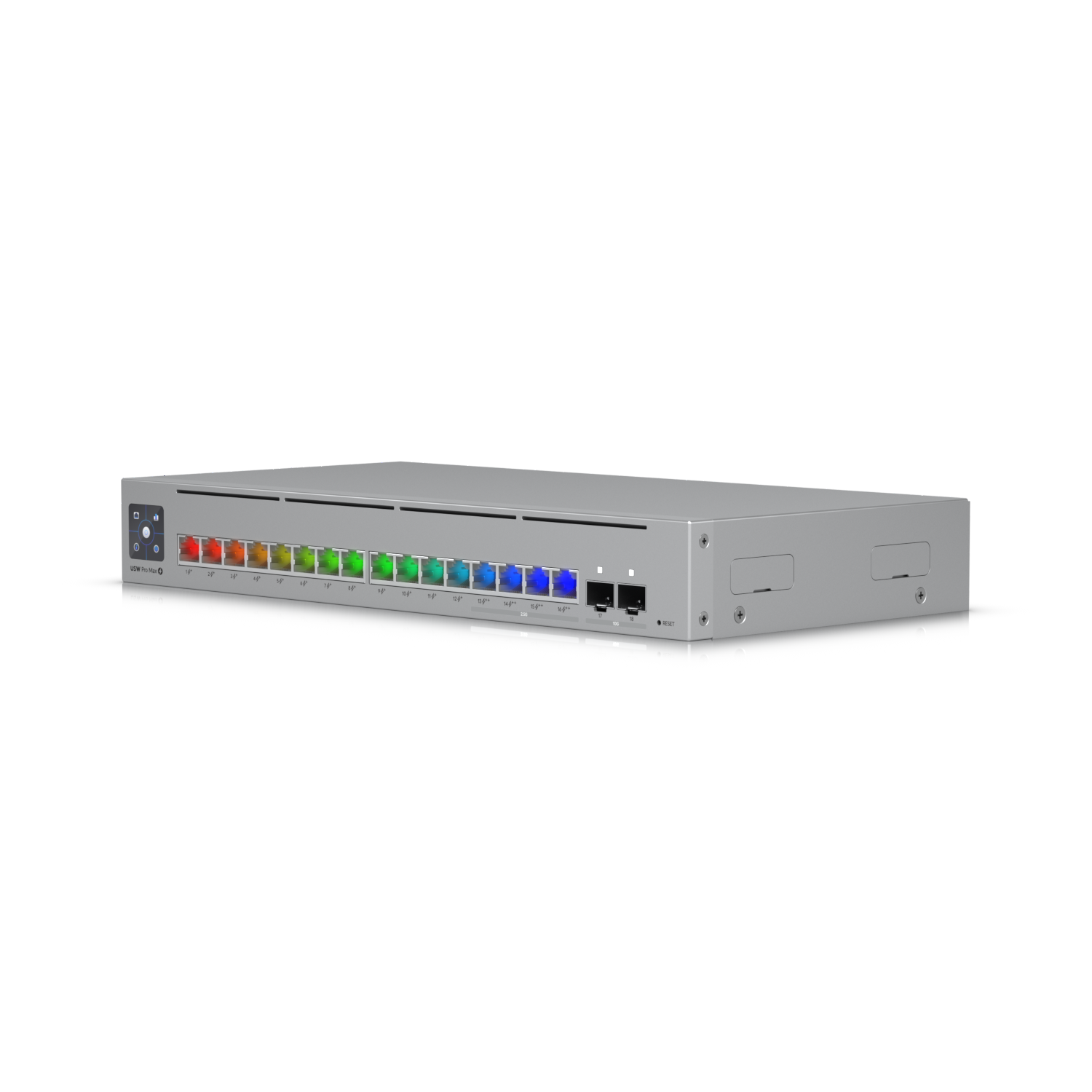

Ubiquiti USW-Pro-Max-16-PoE 180W

Original price was: ₹76,999.00.Current price is: ₹47,999.00. Inc. tax (40,677.12Exc. Tax)

The Ubiquiti USW-Pro-Max-16-PoE is a compact Layer 3 managed PoE switch with 12 × 1GbE PoE+ ports, 4 × 2.5GbE PoE++ ports, and 2 × 10G SFP+ uplinks. It features a 180W PoE budget, Etherlighting™ technology, and a versatile rack-mount, desktop, or wall-mount design, making it ideal for small businesses, AV setups, and high-performance networking needs.

Out of stock

We are trying hard to provide best price, still not satisfied. Let us know

[contact-form-7 id=”345aebe” title=”Found Product At Lower Price”]
  • Pick up from the FGTECH Store

To pick up today

0-1 Days

Free

  • Courier delivery

Our courier will deliver to the specified address

4-7 Days

Free

  • Porter / WeFast

Currently available only in Mumbai

0-1 Days

To be paid directly to service vendor

  • Fast Delivery ( By Air )

We will ship from your product By Air to nearest center to speed up the delivery

2-4 Days

Start from Rs250 Extra

SKU: FGINS5LL42V3 Categories: , Brand:
Description

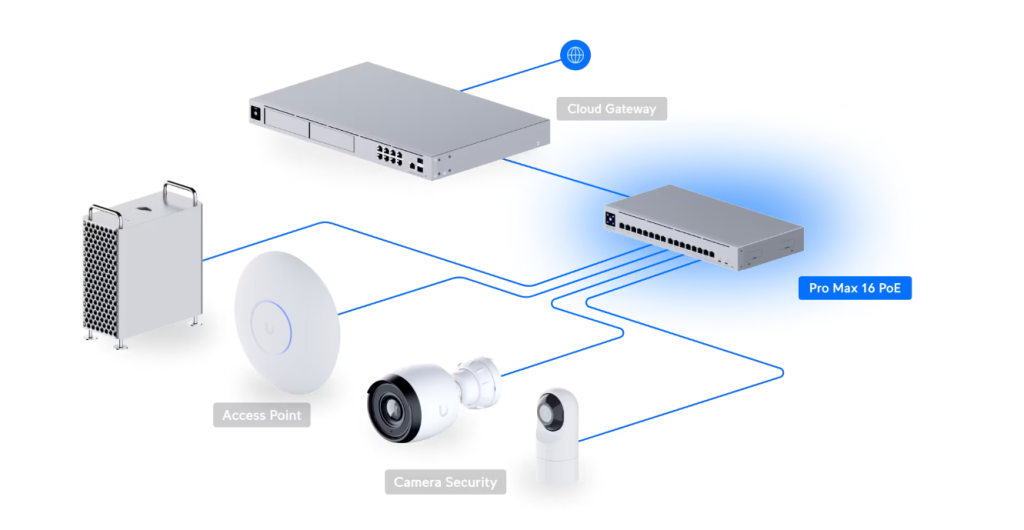

The Ubiquiti USW-Pro-Max-16-PoE is a high-performance, compact Layer 3 switch designed for modern networking environments. It features 16 total RJ45 ports, including 12 Ă— 1GbE PoE+ ports and 4 Ă— 2.5GbE PoE++ ports, allowing high-speed connectivity and power delivery for Wi-Fi 6/6E access points, security cameras, VoIP phones, and AV devices. Additionally, 2 Ă— 10G SFP+ uplink ports provide high-speed fiber connections for seamless network expansion.

Ubiquiti USW-Pro-Max-16-PoE comes with a 180W PoE budget, the USW-Pro-Max-16-PoE ensures sufficient power for multiple PoE devices. Etherlighting™ technology enables real-time port status indication, simplifying network troubleshooting and monitoring.

Ubiquiti USW-Pro-Max-16-PoE switch includes Layer 3 capabilities, such as DHCP server, inter-VLAN routing, and static routing, making it a powerful yet compact solution for small-to-medium business networks. Security features like 802.1X authentication, MAC-based ACLs, DHCP snooping, and port isolation ensure secure access control and network protection.

Ubiquiti USW-Pro-Max-16-PoE comes with a 84 Gbps switching capacity, 42 Gbps non-blocking throughput, and 62 Mpps forwarding rate, this switch provides low-latency, high-speed performance for demanding network applications. Pro AV optimizations, including dedicated profiles for Dante, Q-SYS, NDI, SDVoE, AES67, and Crestron, make it an excellent choice for audiovisual and high-bandwidth environments.

Key Features:

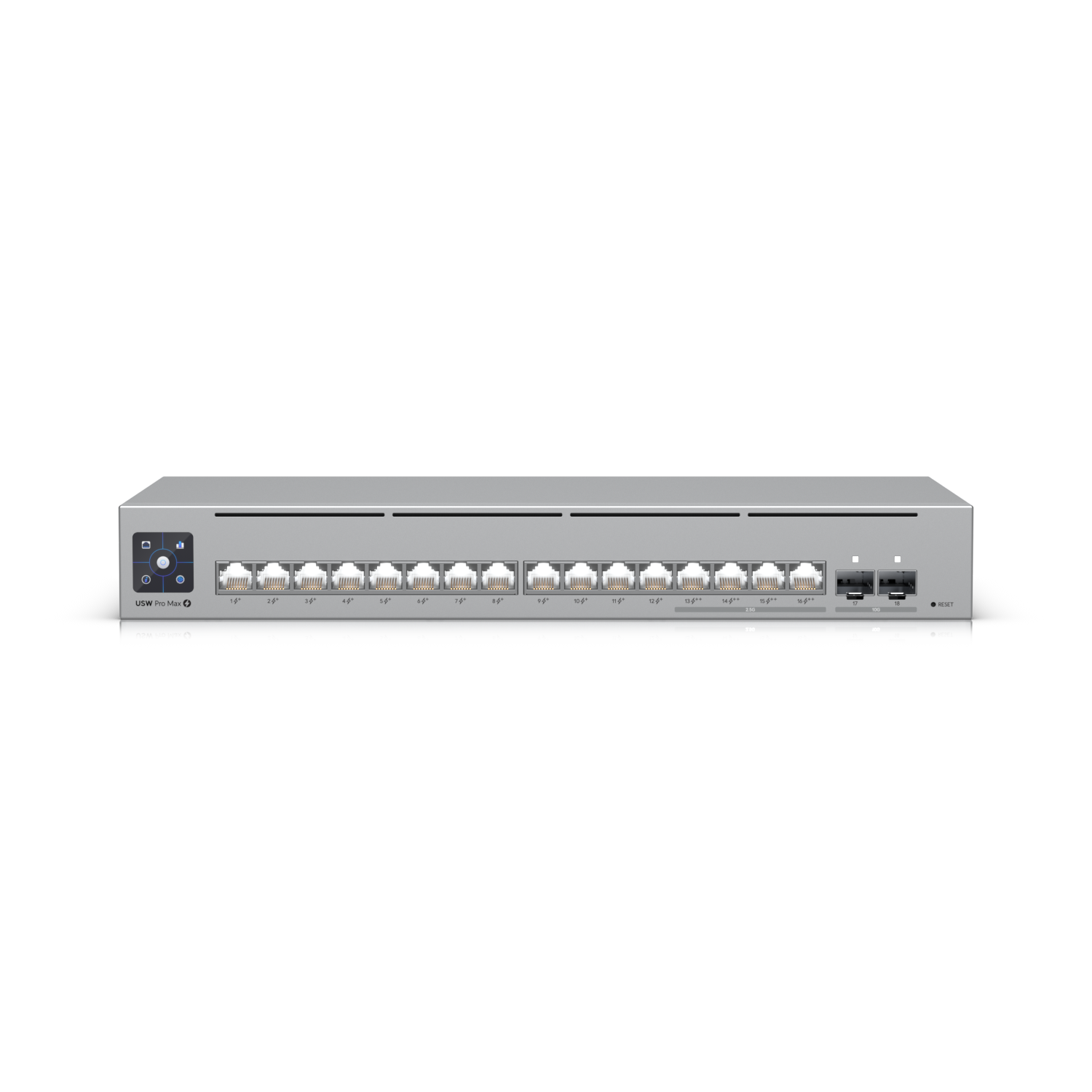

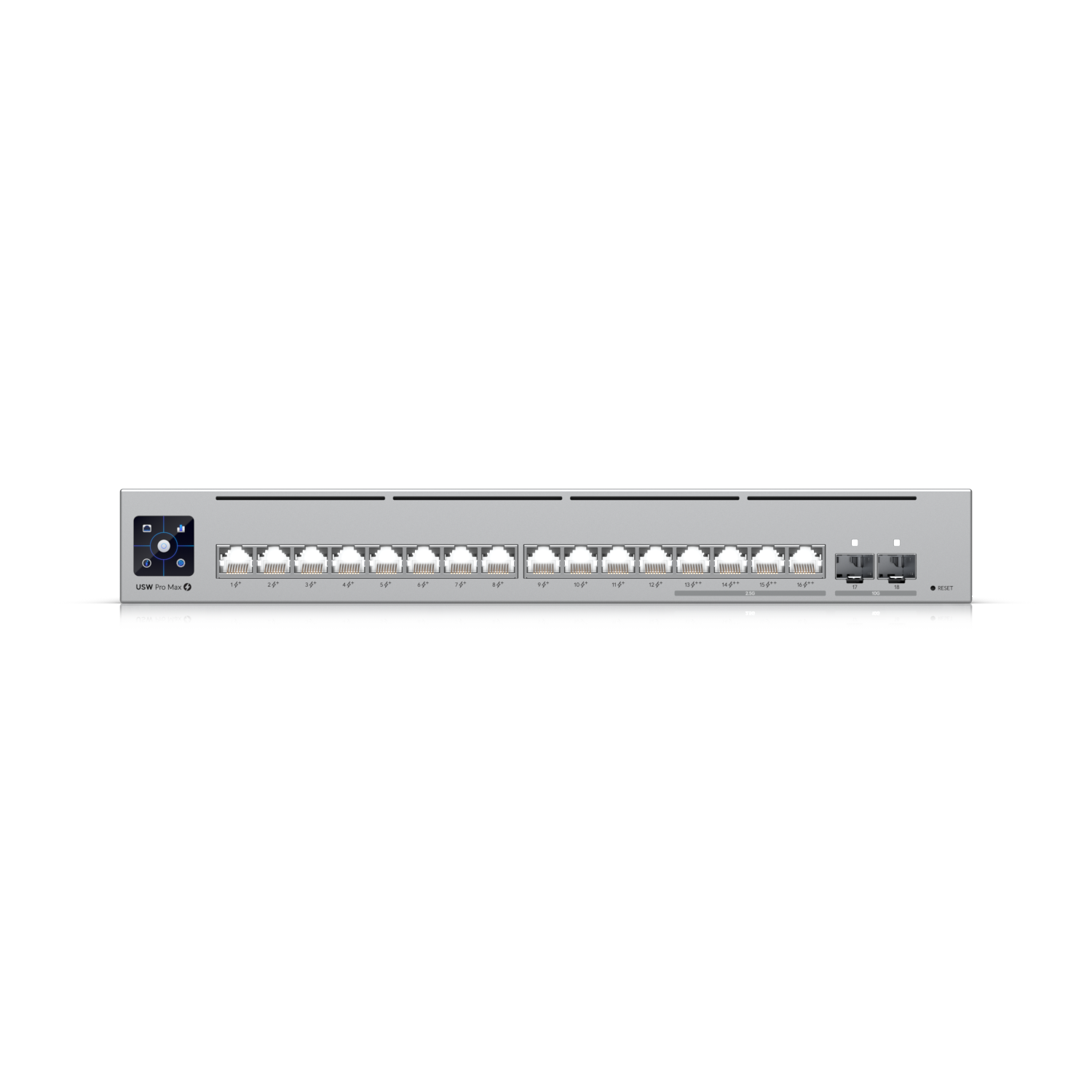

  • 16 RJ45 ports:
    • 12 Ă— 1GbE PoE+ ports
    • 4 Ă— 2.5GbE PoE++ ports
  • 2 Ă— 10G SFP+ uplinks for fiber expansion
  • 180W PoE budget for powering connected devices
  • Layer 3 support: DHCP server, VLAN routing, static routing

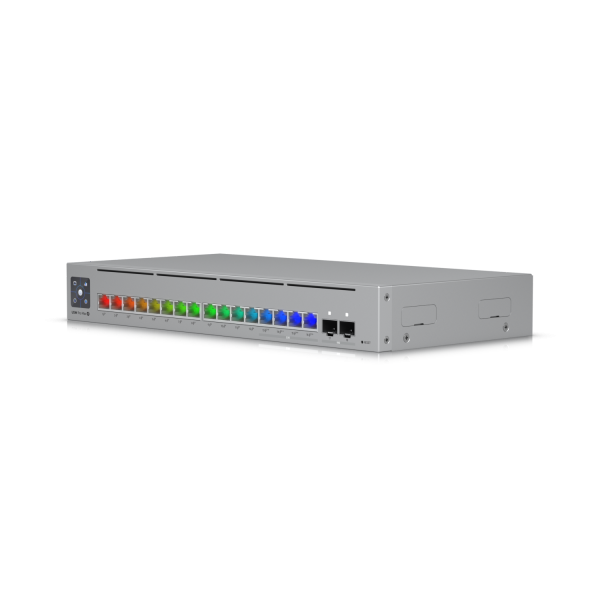

  • Etherlighting™ technology for intuitive network monitoring
  • Advanced security: MAC-based ACLs, DHCP snooping, 802.1X authentication
  • Pro AV support: Optimized profiles for Dante, Q-SYS, SDVoE, AES67, and more

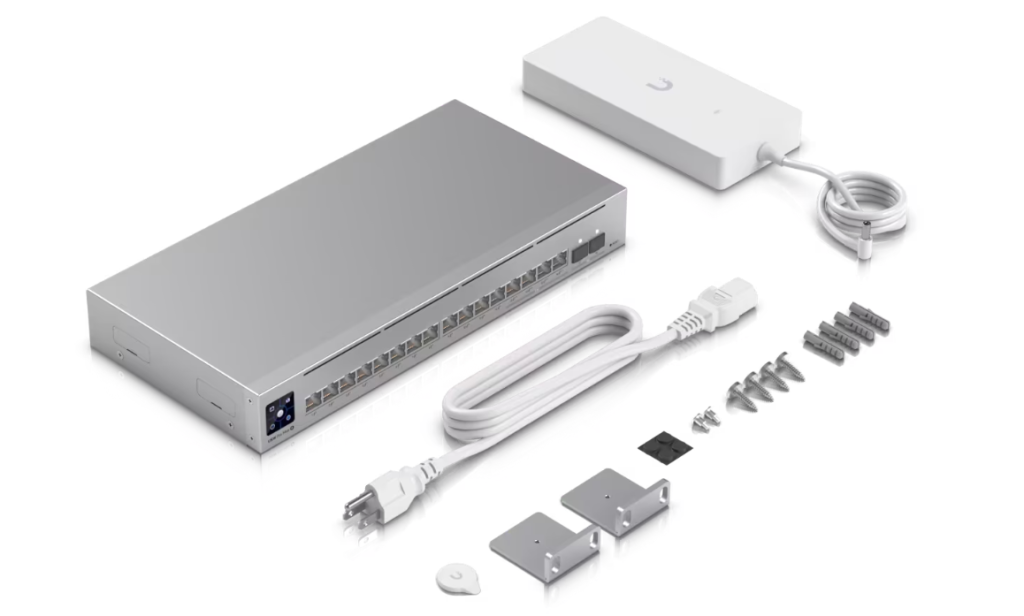

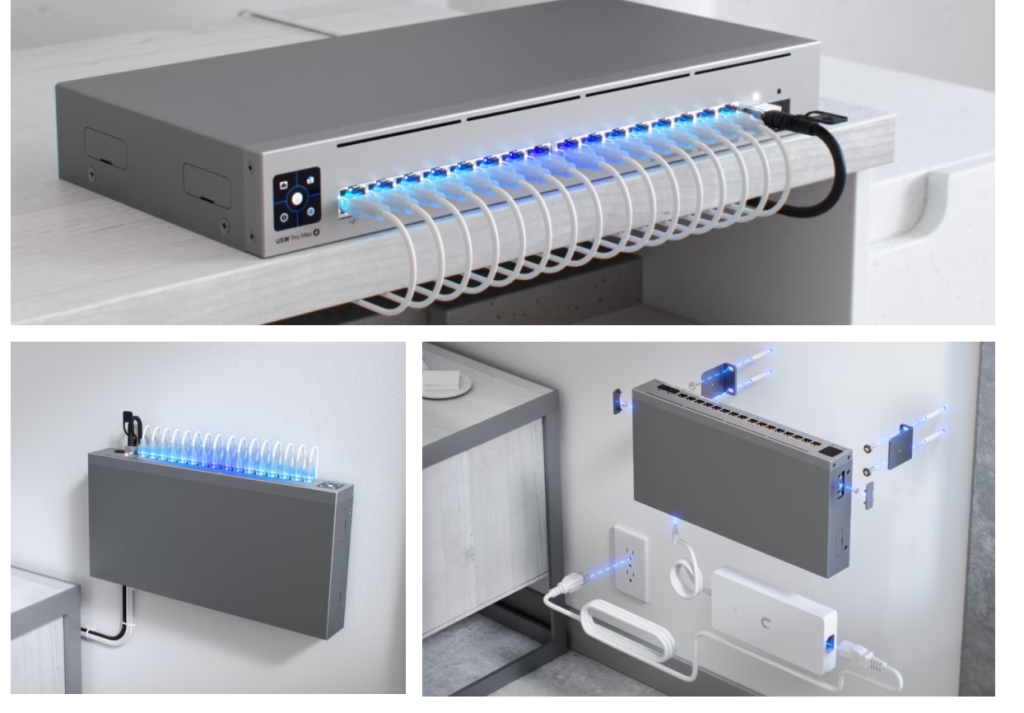

  • Compact & versatile design: Rack-mount, desktop, or wall-mount installation
  • 1.3″ LCM Touchscreen for real-time system monitoring
  • SGCC steel enclosure for durability
  • Operating temperature: -5 to 40°C (23 to 104°F)

The Ubiquiti USW-Pro-Max-16-PoE is a powerful, high-efficiency Layer 3 switch designed to deliver fast networking, robust security, and advanced AV optimizations, making it perfect for small-to-medium business networks, AV setups, and high-performance applications.

About Ubiquiti

Ubiquiti India: Authorized UniFi Networking & AI-Protect Surveillance - FGTECH STORE

Why Ubiquiti? Enterprise Power. Zero Subscription Fees.

Ubiquiti has redefined the Indian IT landscape by offering professional-grade networking without the burden of recurring licensing costs. At FGTECH Store, we provide the full UniFi ecosystem—integrating high-speed Wi-Fi, AI-powered security, and centralized cloud management into a single, intuitive dashboard.

1. UniFi Protect: The AI-Driven Security Revolution

Move beyond traditional CCTV. The Ubiquiti Protect Series offers local, secure storage with no monthly cloud fees.

  • AI Analytics: Human, vehicle, and license plate recognition built-in.

  • Edge Processing: Faster alerts and 4K crystal-clear footage.

  • NVR Scalability: From UNVR-Instant to the UNVR-Pro (7-bay RAID 1/5/10) for massive enterprise storage.

2. UniFi Wi-Fi 6/7: High-Density Wireless Performance

Designed for the modern Indian home and office where device density is high.

  • U6-Pro & U6-Plus: Optimized for high-throughput indoor environments.

  • U6-Mesh: Industrial design for flexible indoor/outdoor deployments.

  • UDM-Pro / UCG-Ultra: The ultimate "Brain" for your network, combining a router, firewall, and controller in one.

3. The Integrated Ecosystem (One Dashboard to Rule Them All)

  • Single Pane of Glass: Manage networking, surveillance, and access control via the UniFi Controller.

  • License-Free: Unlike Cisco or Meraki, Ubiquiti offers professional features with Zero Annual Fees.

The Power of the Ubiquiti Ecosystem

Ubiquiti stands out with its integrated ecosystem, ensuring a flawless user experience across networking, security, and IoT. Benefits include:
🔹 Centralized Management – Control all devices via the UniFi Controller or UISP (for ISPs).
🔹 Zero-Touch Deployment – Easy setup and remote configuration.
🔹 Scalable Networking – Expand seamlessly with UniFi Switches, Gateways & Cloud Controllers.
🔹 Cost-Effective, Enterprise-Grade – High-performance networking without expensive licensing fees.

Why Buy Ubiquiti from FGTech Store?

At FGTech Store, we ensure:
🔹 100% Genuine Ubiquiti Products – Authorized seller with warranty.
🔹 Competitive Pricing – Best value for business and home networking.
🔹 Expert Support & Consultation – Get guidance from networking specialists.
🔹 Fast Shipping Across India – Reliable delivery for quick deployments.

Here is a list of popular ubiquiti products available in India

Product NameCategoryDescriptionKey Features
UCG-UltraGateway/RouterHigh-performance UniFi Cloud Gateway Ultra for networkingAdvanced security, high-speed connectivity, UniFi integration
UDM-ProUniFi ControllerUniFi Dream Machine Pro – All-in-one security gateway & NVR8-port switch, UniFi OS, IDS/IPS, Dual WAN
UVC-G5-Dome-UltraSurveillanceUltra-clear G5 Dome security camera with AI-enhanced video4K resolution, AI motion detection, night vision
U6-ProWi-Fi Access PointHigh-performance Wi-Fi 6 access point for fast connectivityDual-band Wi-Fi 6, 5.3 Gbps speed, Indoor use
U6-PlusWi-Fi Access PointCompact Wi-Fi 6 access point for homes & officesDual-band, up to 3 Gbps, Power over Ethernet (PoE)
USW-PRO-48-POENetwork Switch48-port PoE UniFi switch for enterprise networking48 PoE+ ports, 600W total PoE budget, Layer 3 capabilities
USW-FLEXPoE SwitchCompact, outdoor-rated PoE switch for flexible deployments5-port GbE, PoE passthrough, Weather-resistant design
PBE-5AC-Gen2Wireless BridgePowerBeam AC Gen2 – Long-range 5 GHz PtP/PtMP bridge450+ Mbps throughput, 25 dBi antenna, airMAX AC
LBE-5AC-Gen2Wireless BridgeLiteBeam AC Gen2 – Lightweight 5 GHz PtP/PtMP solution450+ Mbps throughput, 23 dBi antenna, airMAX AC
ETH-SP-G2Surge ProtectorEthernet surge protector for outdoor network protectionGigabit support, ESD protection, Compatible with PoE

Network Video Recorders (NVRs)

  • UNVR – 4-bay NVR with RAID 1/5, ideal for medium to large deployments.
  • UNVR-PRO – Enterprise-grade, 7-bay NVR with RAID 1/5/10, dual 10G SFP+, and a touchscreen.

Cameras

  • UVC-G5-Dome-Ultra – 2K dome camera with AI detection and superior low-light performance.
  • UVC-G5-Dome – 4MP (2K) compact indoor/outdoor dome camera with IR night vision and AI motion detection.
  • UVC-G5-Bullet – 2K weather-resistant bullet camera with IR night vision and AI-powered smart detection.
  • UVC-G5-Flex – 1080p compact camera with a magnetic base for flexible indoor/outdoor mounting.
  • UVC-G5-Turret-Ultra – 2K turret-style camera with advanced AI and low-light enhancements for high-security needs.

Upgrade to Ubiquiti’s Protect Series, Wi-Fi 6, and UniFi ecosystem with FGTech Store – India’s trusted Ubiquiti supplier!

Q. Why should I buy from FGTECH Store instead of the official Ubiquiti India Store?

While the Ubiquiti India store is an excellent source for hardware, FGTECH Store provides a more "hands-on" partner experience tailored for professional deployments and complex project requirements.

  • Real-Time Technical Consultation: The official store is a self-service platform. At FGTECH, we provide pre-sales architecture support. If you aren't sure which PoE budget you need or how many APs are required for your floor plan, our specialists are available on WhatsApp to verify your BOM (Bill of Materials).

  • Flexible Logistics (Mumbai Local Advantage): We offer local pickup in Mumbai and specialized express shipping options that go beyond standard courier templates. If you have a "Site-Down" emergency, we can often facilitate faster turnaround times.

  • Consolidated Project Orders: Most IT projects require more than just Ubiquiti. At FGTECH, you can bundle your UniFi gear with Seagate SkyHawk HDDs, Rack Cabinets, and Patch Cords in a single shipment and a single invoice.

  • Proactive Warranty Assistance: While the official store follows a standard automated RMA process, we act as your first line of support. If you face an issue, we help diagnose if it's a configuration error or a hardware fault before you go through the effort of an RMA.

  • Dedicated Account Management: For B2B clients and recurring buyers, we offer personalized service and order tracking that a high-volume automated store simply cannot match.



Ubiquiti Logo
Product Details

SpecificationDetails

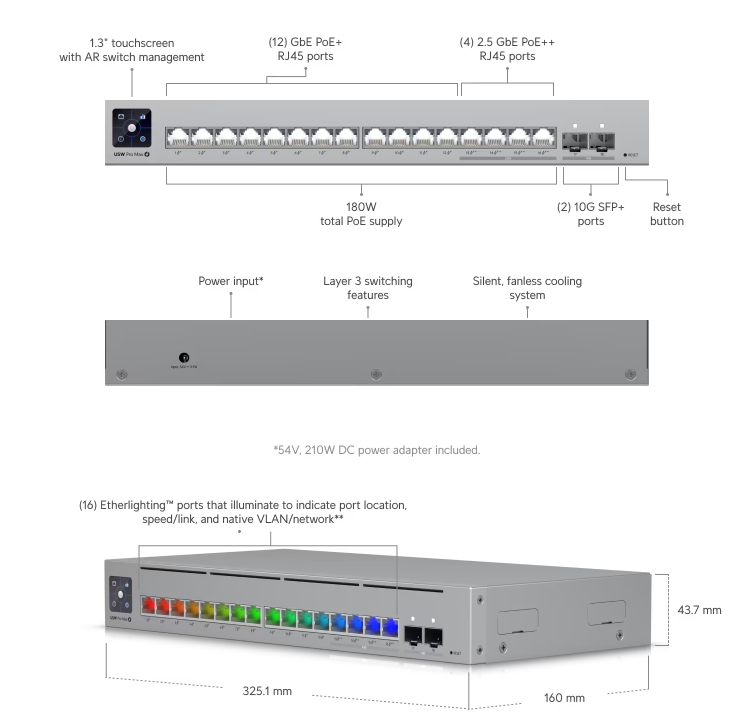

Dimensions325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")
Port Layout1 GbE RJ45: 12 (All PoE+) 2.5 GbE RJ45: 4 (All PoE++) 10G SFP+: 2
Max. PoE OutputUp to PoE++
Total PoE Availability180W
Layer 3âś“
Form FactorRack mount (1U), desktop, wall
Etherlighting™✓
Switching Capacity84 Gbps
Total Non-Blocking Throughput42 Gbps
Forwarding Rate62 Mpps
Supported VLANs1,000
MAC Address Table Size16,000
L3 Table SizeARP Entries: 6,000 IPv4 Routes: 512
Packet Buffer Size1.5 MB
Layer 3 FeaturesDHCP Server (Local Networks), DHCP Relay, Inter-VLAN Routing, Static Routing
Layer 2 FeaturesLACP Port Aggregation, STP & RSTP, QoS (DSCP), Pro AV Profiles, Advanced IGMP Configuration, IGMP Snooping, 802.1X Control, MAC-Based ACLs & Device Isolation, DHCP Snooping & Guarding, Egress Rate Limit, Flow Control, Storm Control, Multicast & Broadcast Rate Limiting, MAC Address Blocking, IP-Based ACLs & Network Isolation, MAC-Based Port Restriction, Port Isolation, Port Mirroring, Jumbo Frames, LLDP-MED, Voice VLAN, Loop Protection
PoE PortsPoE+: 12 PoE++: 4
Max. PoE Wattage per Port by PSEPoE: 15.4W PoE+: 32W PoE++: 64W
Max. Power Consumption25W (Excluding PoE Output) 210W (Including PoE Output)
Power MethodAC Adapter
Power Input MethodAC input
Power SupplyAC/DC, external, 210W
Supported Voltage Range50–54V DC
ManagementEthernet, AR
Heat Dissipation102.36 BTU/hr (Excluding PoE Output)
Weight2.1 kg (4.6 lb)
Enclosure MaterialSGCC steel
LCM Display1.3" touchscreen
Operating Temperature-5°C to 40°C (23°F to 104°F)
Operating Humidity10–90% noncondensing
CertificationsCE, FCC, IC
Etherlighting™Ethernet, SFP+
