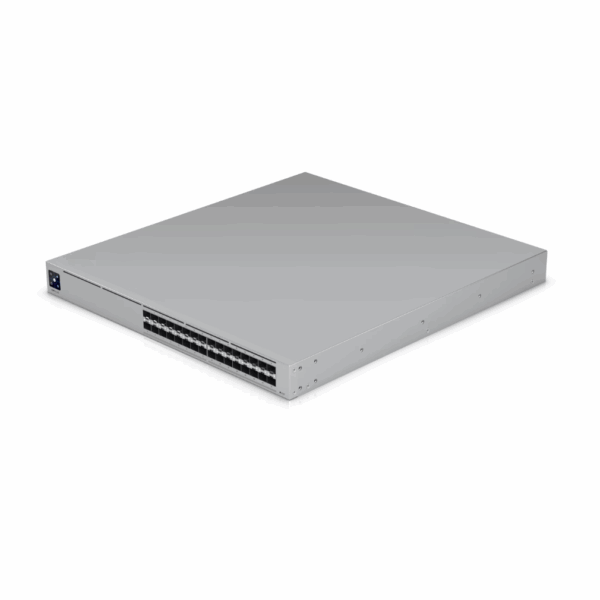

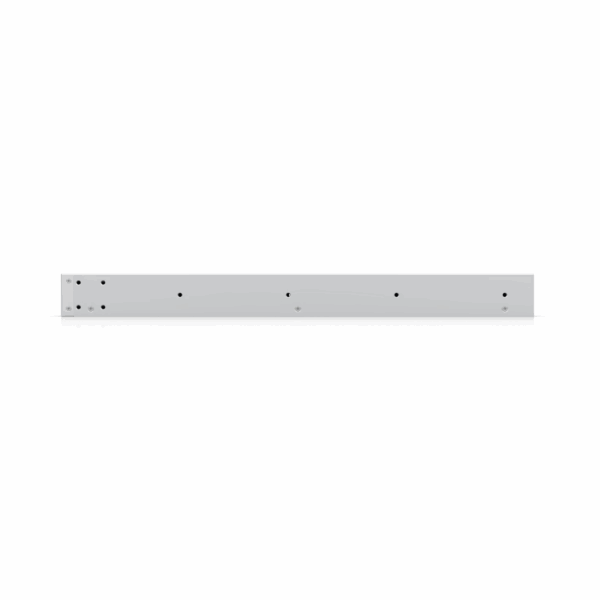

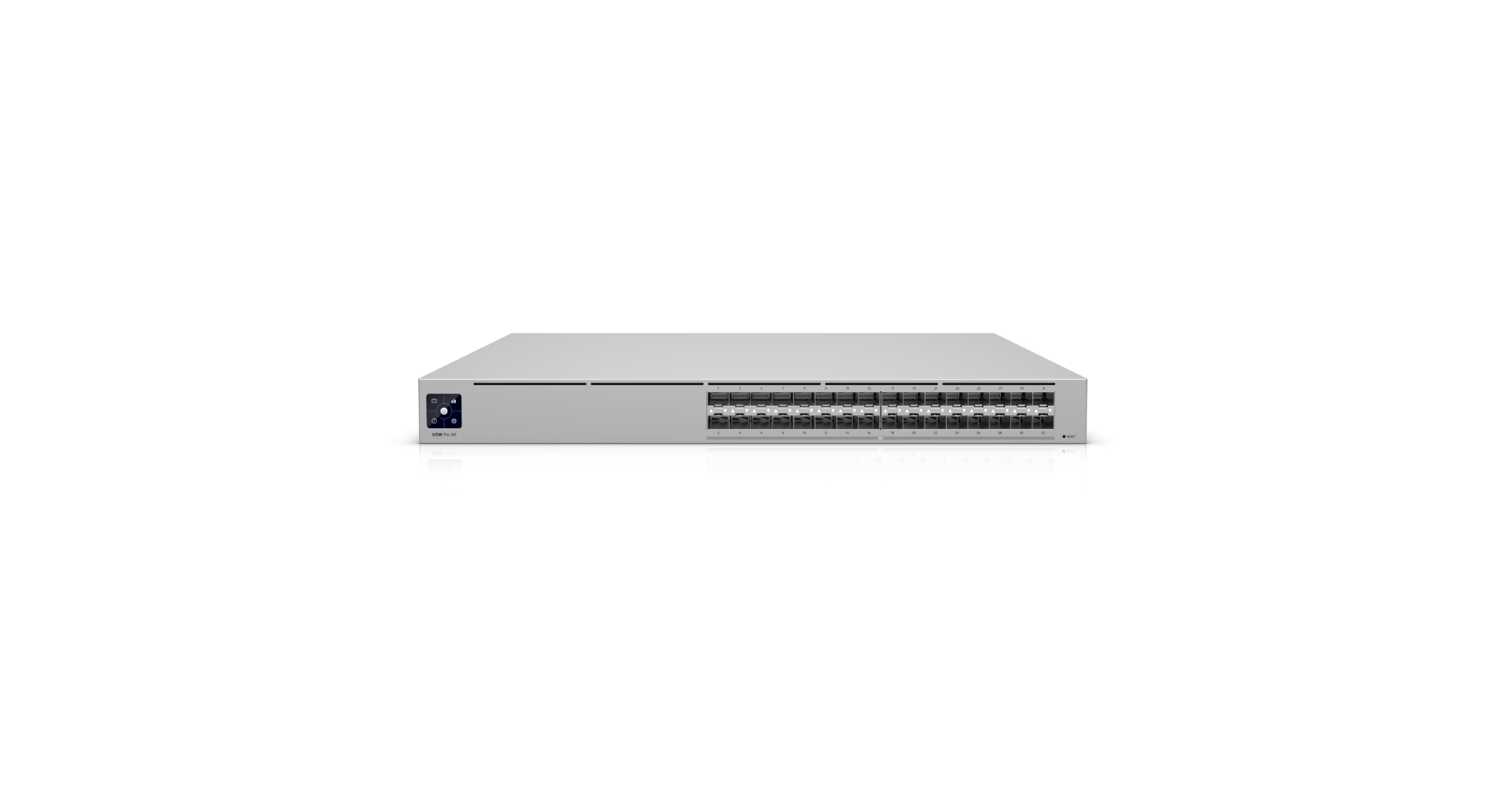

Ubiquiti USW-Pro-XG-Aggregation – 32-Port 25G Layer 3 Managed Aggregation Switch with Etherlighting, 1.6Tbps Switching Capacity & Redundant Power Support

Ubiquiti USW-Pro-XG-Aggregation is a professional-grade 32-port Layer 3 managed switch designed for ultra-high-speed 25G aggregation. Featuring Etherlighting™ visual indicators, 1.6 Tbps switching capacity, redundant DC power backup, and a durable rackmount design, it’s ideal for enterprise, data center, and high-performance network cores.

We are trying hard to provide best price, still not satisfied. Let us know

[contact-form-7 id=”345aebe” title=”Found Product At Lower Price”]
  • Pick up from the FGTECH Store

To pick up today

0-1 Days

Free

  • Courier delivery

Our courier will deliver to the specified address

4-7 Days

Free

  • Porter / WeFast

Currently available only in Mumbai

0-1 Days

To be paid directly to service vendor

  • Fast Delivery ( By Air )

We will ship from your product By Air to nearest center to speed up the delivery

2-4 Days

Start from Rs250 Extra

SKU: FGINS1RY7MLY Categories: , Brand:
Description

The Ubiquiti USW-Pro-XG-Aggregation is a high-performance 25G Layer 3 aggregation switch built to handle the most demanding enterprise, data center, and service provider environments. Ubiquiti USW-Pro-XG-Aggregation is equipped with 32x 25G SFP28 ports supporting 25G/10G/1G speeds, it delivers 1.6 Tbps switching capacity and 800 Gbps non-blocking throughput, ensuring ultra-fast data transport across your network infrastructure.

Ubiquiti USW-Pro-XG-Aggregation comes with full Layer 3 functionality, including DHCP server and relay, static routing, and inter-VLAN routing, the USW-Pro-XG-Aggregation enables efficient network segmentation and optimized traffic flow. Advanced Layer 2 features like LACP, STP/RSTP, IGMP Snooping, ACLs, and 802.1X authentication enhance reliability, performance, and security across all connected devices.

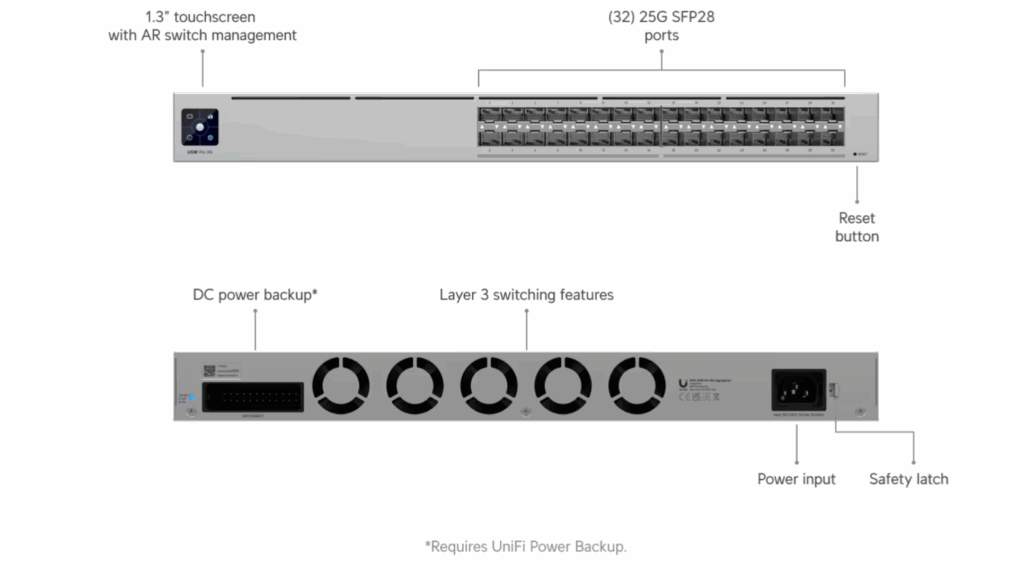

Ubiquiti USW-Pro-XG-Aggregation switch introduces Etherlighting™ technology, providing at-a-glance visual feedback on port status and traffic activity. A 1.3” touchscreen LCM display offers intuitive monitoring and quick diagnostics, reducing the need for external interfaces during troubleshooting.

Built from robust SGCC steel, the USW-Pro-XG-Aggregation features redundant DC power input, a 200W internal PSU, and NDAA compliance, ensuring enterprise-grade reliability and global deployment suitability. Manage and configure seamlessly via the UniFi Network Application (v9.0.114 or later) to benefit from unified visibility, configuration, and real-time performance analytics.

Key Features:

  • High-Capacity Switching: 32x 25G SFP28 ports supporting 25G/10G/1G speeds

  • Massive Performance: 1.6 Tbps switching capacity and 800 Gbps non-blocking throughput

  • Layer 3 Functionality: DHCP server/relay, static routing, and inter-VLAN routing

  • Etherlighting™ Visual Feedback: Real-time port activity indicators for quick status checks

  • Touchscreen Display: 1.3” LCM screen for system and network monitoring

  • Advanced Layer 2 Controls: LACP, STP/RSTP, QoS, and IGMP Snooping

  • Enhanced Security: 802.1X control, MAC/IP ACLs, DHCP Guarding, and Port Isolation

  • Redundant Power Options: Internal 200W PSU with DC backup input for reliability

  • Enterprise-Grade Build: SGCC steel 1U rackmount chassis with heat dissipation up to 457 BTU/hr

  • Seamless UniFi Integration: Managed through UniFi Network (v9.0.114+) for unified configuration

About Ubiquiti

Ubiquiti India: Authorized UniFi Networking & AI-Protect Surveillance - FGTECH STORE

Why Ubiquiti? Enterprise Power. Zero Subscription Fees.

Ubiquiti has redefined the Indian IT landscape by offering professional-grade networking without the burden of recurring licensing costs. At FGTECH Store, we provide the full UniFi ecosystem—integrating high-speed Wi-Fi, AI-powered security, and centralized cloud management into a single, intuitive dashboard.

1. UniFi Protect: The AI-Driven Security Revolution

Move beyond traditional CCTV. The Ubiquiti Protect Series offers local, secure storage with no monthly cloud fees.

  • AI Analytics: Human, vehicle, and license plate recognition built-in.

  • Edge Processing: Faster alerts and 4K crystal-clear footage.

  • NVR Scalability: From UNVR-Instant to the UNVR-Pro (7-bay RAID 1/5/10) for massive enterprise storage.

2. UniFi Wi-Fi 6/7: High-Density Wireless Performance

Designed for the modern Indian home and office where device density is high.

  • U6-Pro & U6-Plus: Optimized for high-throughput indoor environments.

  • U6-Mesh: Industrial design for flexible indoor/outdoor deployments.

  • UDM-Pro / UCG-Ultra: The ultimate "Brain" for your network, combining a router, firewall, and controller in one.

3. The Integrated Ecosystem (One Dashboard to Rule Them All)

  • Single Pane of Glass: Manage networking, surveillance, and access control via the UniFi Controller.

  • License-Free: Unlike Cisco or Meraki, Ubiquiti offers professional features with Zero Annual Fees.

The Power of the Ubiquiti Ecosystem

Ubiquiti stands out with its integrated ecosystem, ensuring a flawless user experience across networking, security, and IoT. Benefits include:
🔹 Centralized Management – Control all devices via the UniFi Controller or UISP (for ISPs).
🔹 Zero-Touch Deployment – Easy setup and remote configuration.
🔹 Scalable Networking – Expand seamlessly with UniFi Switches, Gateways & Cloud Controllers.
🔹 Cost-Effective, Enterprise-Grade – High-performance networking without expensive licensing fees.

Why Buy Ubiquiti from FGTech Store?

At FGTech Store, we ensure:
🔹 100% Genuine Ubiquiti Products – Authorized seller with warranty.
🔹 Competitive Pricing – Best value for business and home networking.
🔹 Expert Support & Consultation – Get guidance from networking specialists.
🔹 Fast Shipping Across India – Reliable delivery for quick deployments.

Here is a list of popular ubiquiti products available in India

Product NameCategoryDescriptionKey Features
UCG-UltraGateway/RouterHigh-performance UniFi Cloud Gateway Ultra for networkingAdvanced security, high-speed connectivity, UniFi integration
UDM-ProUniFi ControllerUniFi Dream Machine Pro – All-in-one security gateway & NVR8-port switch, UniFi OS, IDS/IPS, Dual WAN
UVC-G5-Dome-UltraSurveillanceUltra-clear G5 Dome security camera with AI-enhanced video4K resolution, AI motion detection, night vision
U6-ProWi-Fi Access PointHigh-performance Wi-Fi 6 access point for fast connectivityDual-band Wi-Fi 6, 5.3 Gbps speed, Indoor use
U6-PlusWi-Fi Access PointCompact Wi-Fi 6 access point for homes & officesDual-band, up to 3 Gbps, Power over Ethernet (PoE)
USW-PRO-48-POENetwork Switch48-port PoE UniFi switch for enterprise networking48 PoE+ ports, 600W total PoE budget, Layer 3 capabilities
USW-FLEXPoE SwitchCompact, outdoor-rated PoE switch for flexible deployments5-port GbE, PoE passthrough, Weather-resistant design
PBE-5AC-Gen2Wireless BridgePowerBeam AC Gen2 – Long-range 5 GHz PtP/PtMP bridge450+ Mbps throughput, 25 dBi antenna, airMAX AC
LBE-5AC-Gen2Wireless BridgeLiteBeam AC Gen2 – Lightweight 5 GHz PtP/PtMP solution450+ Mbps throughput, 23 dBi antenna, airMAX AC
ETH-SP-G2Surge ProtectorEthernet surge protector for outdoor network protectionGigabit support, ESD protection, Compatible with PoE

Network Video Recorders (NVRs)

  • UNVR – 4-bay NVR with RAID 1/5, ideal for medium to large deployments.
  • UNVR-PRO – Enterprise-grade, 7-bay NVR with RAID 1/5/10, dual 10G SFP+, and a touchscreen.

Cameras

  • UVC-G5-Dome-Ultra – 2K dome camera with AI detection and superior low-light performance.
  • UVC-G5-Dome – 4MP (2K) compact indoor/outdoor dome camera with IR night vision and AI motion detection.
  • UVC-G5-Bullet – 2K weather-resistant bullet camera with IR night vision and AI-powered smart detection.
  • UVC-G5-Flex – 1080p compact camera with a magnetic base for flexible indoor/outdoor mounting.
  • UVC-G5-Turret-Ultra – 2K turret-style camera with advanced AI and low-light enhancements for high-security needs.

Upgrade to Ubiquiti’s Protect Series, Wi-Fi 6, and UniFi ecosystem with FGTech Store – India’s trusted Ubiquiti supplier!

Q. Why should I buy from FGTECH Store instead of the official Ubiquiti India Store?

While the Ubiquiti India store is an excellent source for hardware, FGTECH Store provides a more "hands-on" partner experience tailored for professional deployments and complex project requirements.

  • Real-Time Technical Consultation: The official store is a self-service platform. At FGTECH, we provide pre-sales architecture support. If you aren't sure which PoE budget you need or how many APs are required for your floor plan, our specialists are available on WhatsApp to verify your BOM (Bill of Materials).

  • Flexible Logistics (Mumbai Local Advantage): We offer local pickup in Mumbai and specialized express shipping options that go beyond standard courier templates. If you have a "Site-Down" emergency, we can often facilitate faster turnaround times.

  • Consolidated Project Orders: Most IT projects require more than just Ubiquiti. At FGTECH, you can bundle your UniFi gear with Seagate SkyHawk HDDs, Rack Cabinets, and Patch Cords in a single shipment and a single invoice.

  • Proactive Warranty Assistance: While the official store follows a standard automated RMA process, we act as your first line of support. If you face an issue, we help diagnose if it's a configuration error or a hardware fault before you go through the effort of an RMA.

  • Dedicated Account Management: For B2B clients and recurring buyers, we offer personalized service and order tracking that a high-volume automated store simply cannot match.



Ubiquiti Logo
Product Details

ModelUSW-Pro-XG-Aggregation
Dimensions442.4 x 43.7 x 480 mm (17.4 x 1.7 x 18.9")
Form FactorRack Mount (1U)
Port Layout25G SFP28: 32 (25G/10G/1G)
RedundancyDC Power Backup
Layer 3 Support
Etherlighting™
Performance (Switching)Switching Capacity: 1.6 Tbps Total Non-Blocking Throughput: 800 Gbps Forwarding Rate: 1.2 Bpps
Supported VLANs1,000
MAC Address Table Size32,000
L3 Table SizeARP Entries: 128,000 IPv4 Routes: 256,000
Packet Buffer Size8 MB
Access ListsIPv4: 256 MAC: 256
Layer 3 FeaturesDHCP Server, DHCP Relay, Inter-VLAN Routing, Static Routing
Layer 2 FeaturesLACP Port Aggregation, STP & RSTP, Advanced IGMP, IGMP Snooping, 802.1X, MAC-Based ACLs & Device Isolation, DHCP Snooping & Guarding, Egress Rate Limit, Flow Control, Storm Control, Multicast & Broadcast Rate Limiting, MAC Address Blocking, IP-Based ACLs & Network Isolation, MAC-Based Port Restriction, Port Isolation, Port Mirroring, Jumbo Frames, LLDP-MED, Voice VLAN, Loop Protection
Max. Power Consumption200W
Power Method(1) Universal input 100–240V AC, 50/60 Hz (1) USP RPS DC input
Power Input MethodAC input
Power SupplyAC/DC internal, 200W
Supported Voltage Range100–240V AC
ManagementEthernet, AR
Heat Dissipation457 BTU/hr (Excluding PoE Output)
WeightWithout bracket: 7.1 kg (15.7 lbs) With bracket: 7.2 kg (15.9 lbs)
Enclosure MaterialSGCC steel
Mount MaterialSGCC steel

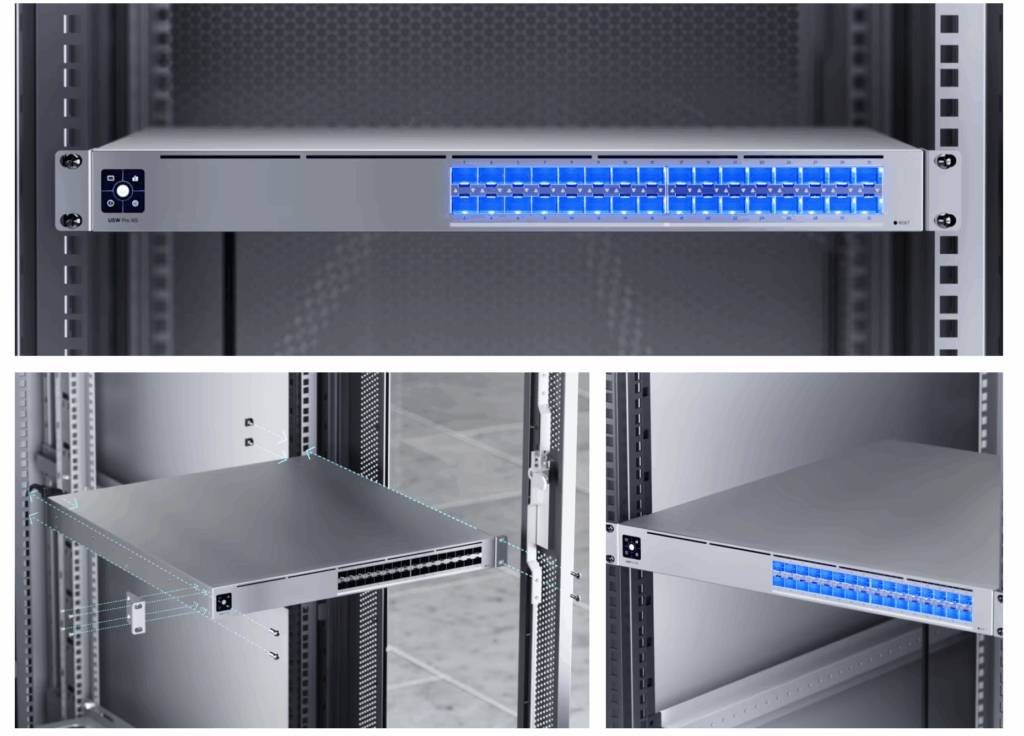

Supported Rack Depth482.6 mm (19") four-post racks 600–1,066 mm (23.6–42”)
LCM Display1.3" touchscreen
ESD ProtectionAir: ±12kV, Contact: ±8kV
Ambient Operating Temp.-5 to 40° C (23 to 104° F)
Ambient Operating Humidity10–90% noncondensing
Etherlighting™ IndicatorsSFP28: ✓
LEDsRPS: ✓
NDAA Compliant
CertificationsCE, FCC, IC
